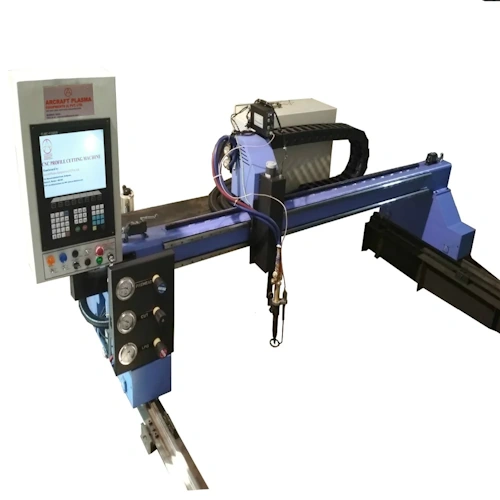

CNC Cutting Machine, CNC1525

We manufacture a wide range of standard and special purpose fixed and portable CNC Plasma Cutting machines.

Our greatest strength is our ability to adapt our standard equipment to fully satisfy your particular application

Features:-

·         Dual Drives on long axisl Customised Bed size: Band sizes available from 1.5M x 6.3M to 3M x 12M which is customisable as per customers requirement.l

·         Industrial Grade ARM chip PLC Controller:

Features:

ü  Industrial grade ARM chip PLC controller Standard shape library

ü  Corner speed control (reduce)

ü  Wireless remote control (optional Wireless pendant)

ü  Program storage (256MB)

ü  USB Port Program Transfer (Connect USB Flash Drives)

ü  Break point resume, auto power break resume,

ü  break point memory

ü  Thick plate outside edge pierce and thin plate cross-bridge function

ü  Built in Kerf compensation function (0-10mm)

ü  Basic Nesting on the fly

·         Dual drive AC Servo: Schneider / Panasonic Servo with 2500PPR / 10000 PPR Optical Encoder.l

·         High precision planetary Gearboxes: High ratio reduction gearboxes provide excellent smoothness and resolution

·         Precision rack and pinion drives on X & Y Axis

·         Flexible cable carriers on both X & Y Axisl Multi torch options: Add up to 10 oxy fuel torches for higher productivity.

·         50mm, 100mm, 150mm Cut Capacity

·         Auto Ignition system: Automatically lights up the oxy Fuel torch

·         Auto Cycle:: Automatic ignition, preheat and cut cycles.

Product Specification
