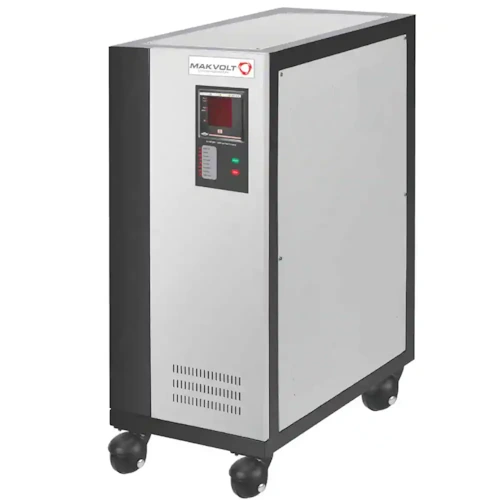

Pure Sine Wave 6 Phase Sinewave Inverter Lift Backup System
₹60,000.00
| Capacity |
6 KVA To 120 KVA
|
| Brand |
Makvolt
|
| Waveform |
Pure Sine Wave
|
- Microcontroller based PWM technology using Hi-Grade IGBTs with Peak Current Handling Capacity.
- Pure Sinewave Technology which ensures Noiseless, Safe and Efficient Performance.
- Wide input voltage and frequency range against harsh utility environment
- Built in high capacity battery charger
- Starts automatically, no user action required
- LCD displays Inverter status and offers easy access to measurements.
- Eco-friendly, no fumes, no noise, no pollution
Applications:-
- Lift Backup System
- Air conditioning units
- Petrol pumps, Water pumps, Electric Motor
Available in:
- 6-100 kVA
Product Specification
| Capacity | 6 KVA To 120 KVA |
| Brand | Makvolt |
| Waveform | Pure Sine Wave |
| Phase | Three |
| Battery Voltage | 12 V |
| Output Voltage | 415 V AC |
| Warranty | 1 Year |
| Total Harmonic Distortion | Less than 3% on Linear Load |
| Integrated Cooling | Heat Sink, Fan |
| Power Factor | 0.8 |
| Audible Noise | Less than 45 dB at 1 Meter |
| Operating Temperature | 0-50 Degree C |
| Crest Factor | 4:1 |
| Frequency | 50Hz-+- 0.5Hz |
| AC Input | 415V+ 15%-20% |
| DC Voltage | 72 VDC to 360 VDC |
| Charging Time | 8 Hours for 90% of full Capacity |
| Charger Type | CVCC Internal Controlled Rectifier type |
| Wave Form | PWM Sine wave |
| LCD Meter | R,Y,B Output Voltages |
| LED Alarm | Mains ON |
| Protections | Max 95%, Non-Condensing |
| Voltage Regulation | 105% Continuous, 150% for 30 sec |
| Overload | 105% Continuous, 150% For 30 Sec |
