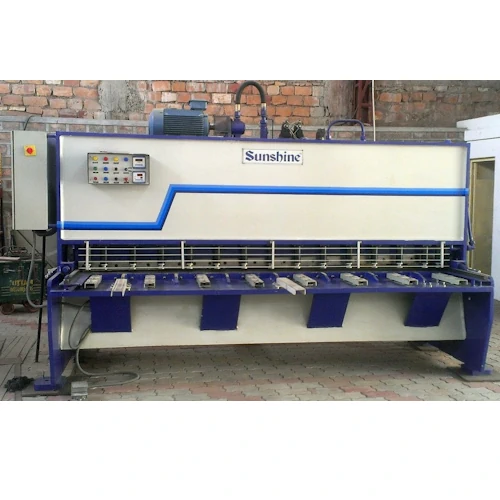

Metal Sheet Shearing Machine

• • Mono Block Welded steel right to deflection tensile movement of high tensile
  • Motorized back gauge with electronic digital readout
  • Electronically adjustment Rake Angle as per material of thickness for twist free as. Synchronized Beam guided system for constant gap between Blades
  • Extra capacity to cut Hard- thicker plate than nominal capacity
  • Blades Produced from High alloying steel with functional four side
  • Adjustable Cutting clamping force for quality cutting power saving
  • Rapid cutting of short pieces by electrical stroke adjustment system

Product Details:

• Moving beam Synchronized by differential Cylinders
• Hardened rollers guide beam for constant blade gap
• Blade gap easily adjustable by calibrated levers
• Rake angle adjustable to suit thickness and material
• Activation from console and movable foot cut switch
• Sheet clamped hydraulically before cut starts
• Stroke length – position can be set for short jobs
• Beam returns on releasing foot switch for smaller cuts
• First two hold down spaced closer at both ends
• Hardened rods on table for safe easier feeding
• Two front supports for supporting longer plates
• Front operated motorised back gauge 1000 mm travel with D. R.O compact low maintenance of silent Hydraulic system

Product Specification
